B4215-650KV Brushless Motor
B4215-650KV Brushless Motor
Ask for a quote below.
Couldn't load pickup availability
The B4215-650KV brushless motor is designed for heavy-lift drone applications, delivering outstanding torque and a KV rating of 650. With a maximum power output of 1500W and support for 2S-6S voltage, this motor is ideal for large propellers (12-15 inches). Weighing only 150g, the B4215-650KV ensures reliable performance and long endurance, making it the perfect solution for industrial and aerial photography UAVs.
SPECIFICATION:
|
Parameter |
B4215-400KV |
B4215-650KV |
|
Item No. |
B4215 |
B4215 |
|
Max Watts |
2477.9 W |
1665.0 W |
|
Max Current (A) |
60.1 A |
47.9 A |
|
Voltage Range (V) |
6S-12S |
6S-12S |
|
KV (RPM/Volt) |
400 |
650 |
|
No Load Current (A) |
0.91 A |
1.5 A |
|
Resistance (Ω) |
0.057 Ω |
0.028 Ω |
|
Rotor Poles |
14 |
14 |
|
Motor Size (mm) |
50.4 * 60.5 mm |
50.4 * 60.5 mm |
|
Stator Size (mm) |
42 * 14 mm |
42 *14 mm |
|
Weight (g) |
260 g |
260 g |

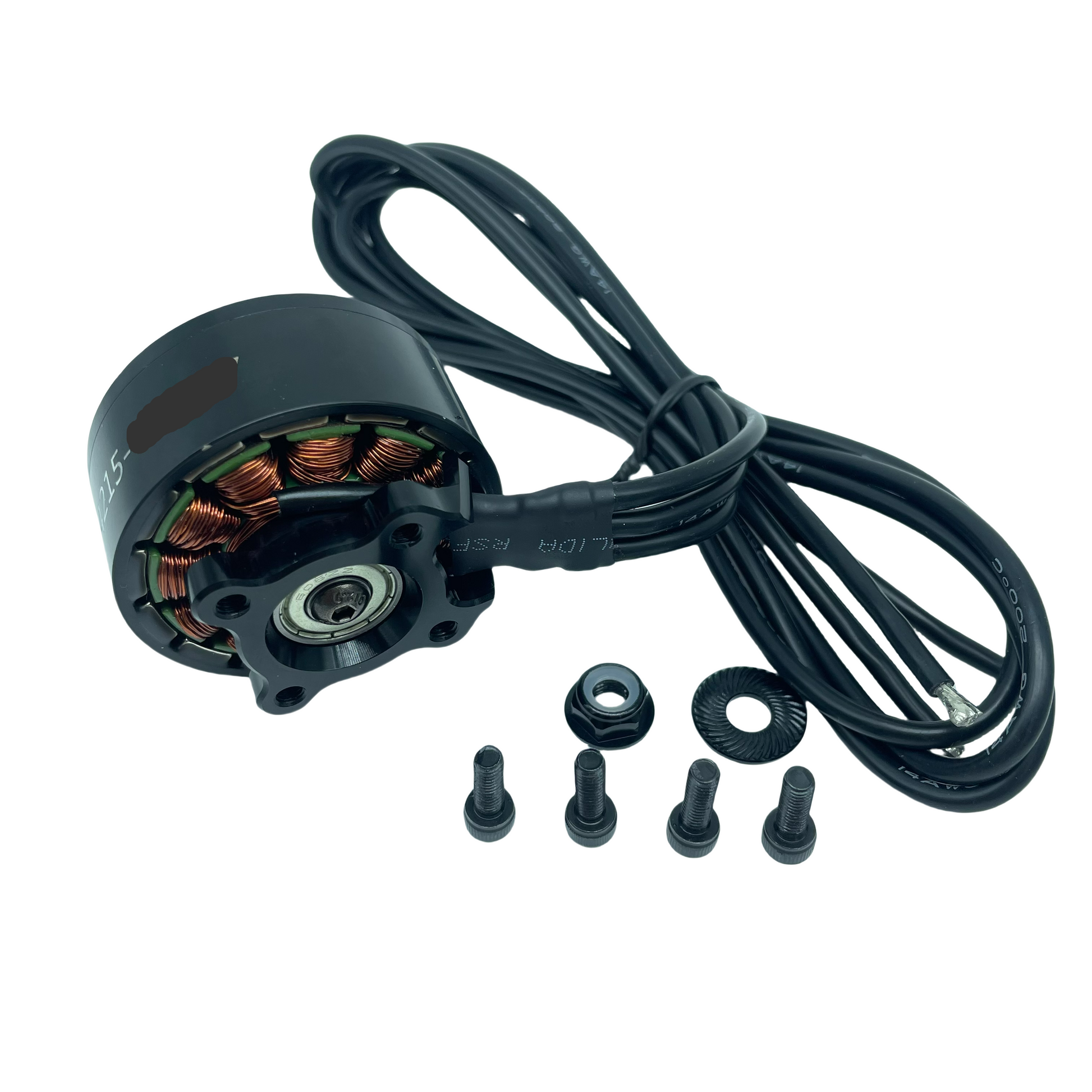

Includes
- 1 x B4215-650KV - Brushless Motor
- Nut ×1
- Washer ×1
- Screw ×4
